Vacuum Bubble Trap

The VD series vacuum bubble trap device, designed by Chroma Germany

Vacuum bubble trap is a vacuum system for trapping liquid, semi-liquid, or pasty products.

Applications

Food industry: Various cold and hot sauces, confectionery creams, cake gels, baby food, flavorings, nutritional supplements, vitamins, fruit juices

Cosmetics and personal care industry: Cosmetic powders, makeup pancakes, lipsticks, mascaras, hair glue, masks, hair dye, nail polish, creams, color pigments, lotions, toothpaste, shampoo

Pharmaceutical industry: Medical creams, gels and ointments, eye medications, and skincare products

Chemical industry: Adhesives, inks and greases, nail polish, microsilica gels in the construction industry, hard homogenized hydrocarbons, fertilizers, shoe wax, car wax, plant pest control poisons, and agricultural pesticides

Bubble Trapping at the Highest Standard

This device is used to guarantee quality and optimize production in many sectors. In addition, it requires minimal supervision in its use and maintenance, and it is easy to operate and clean. The device offers various levels of automation and its replaceable filter geometry allows processing tailored to different products. This system is also fully compatible with CIP.

Advantages at a Glance

Prevention of oxidizing effects such as color change, odor alteration, especially for fats and oils

Consistent smooth, foamy, and shiny surface for the product

Long-term stability increase (chemical stability and shelf life)

Optimal compatibility with specific products

Increased dosing accuracy in downstream filling systems

Reduced packaging volume by increasing specific gravity

Operation Method

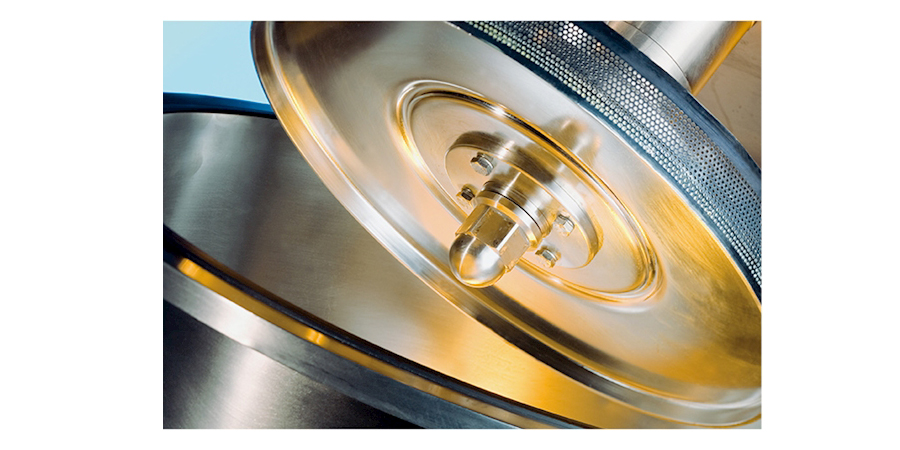

The product is spread in a thin layer on a rotating disk through a distribution valve. Centrifugal force pushes it through the filter cover onto the inner wall of the container, which rotates underneath it. Air bubbles or gas are released in this process and can be removed by the vacuum pump. A discharge pump transfers bubble-free product to the next device in the production line.

Standard Design

Vacuum container with safety device

Thin layer distributor with filter cover

Powerful vacuum system

Discharge pump

Simple operational control system

Options

Uplift tube for foaming heavy products

Double-walled and insulated jacket

CIP cleaning system

Automatic level control

Lift system for opening the chamber

Various filter covers

More options available upon request

In the process of producing semi-viscous liquids and high-viscosity products, air bubbles (or other gases) are unintentionally formed in the product. This not only leads to undesirable effects such as oxidation (spoiling of oil and fat inside the product), changes in scent, taste, color, and shortening of the product's expiration date but also creates numerous problems in weight packaging (especially tube packaging) due to the decrease in product density.

The vacuum bubble trap device designed by Chroma Germany is an ideal solution for eliminating trapped bubbles in high-viscosity products.

This device, like a very fine filter, separates all bubbles from the product, enhancing the quality and texture of semi-solid products (such as various creams, sauces, hair dye, ointments, lotions, toothpaste, etc.).

According to Chroma Germany's recommendation, the most suitable place to install this device is immediately after the mixer or just before the filling machine.

Equipped with a pneumatic door, glass site, independent vacuum pump with automatic vacuum control mechanism, and speed adjustment through an inverter.
